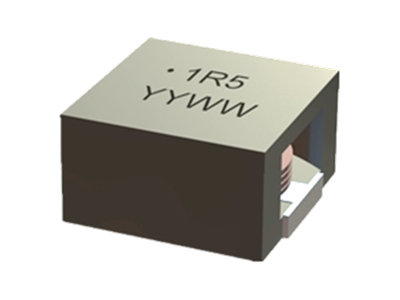

SC2511 Series
• Low profile 3.0mm maximum height SMD power inductor.
• 0.25” foot print, 6.8 x 6.8mm Max.
• Ideal for DC to DC converter, VRM & High density board design.
• Operating frequency of up to 3.0 MHz application.
• Low leakage flux. RoHS and Halogen Free Compliance.
• Operating temperature: -55.0 °C ~ +150.0 °C.
• Suitable for IR reflow and wave solder process.
• RoHS and HF Compliant.
• Tape & Reel Qty: 1500 on a 13” Reel.
• 0.25” foot print, 6.8 x 6.8mm Max.
• Ideal for DC to DC converter, VRM & High density board design.
• Operating frequency of up to 3.0 MHz application.
• Low leakage flux. RoHS and Halogen Free Compliance.
• Operating temperature: -55.0 °C ~ +150.0 °C.
• Suitable for IR reflow and wave solder process.
• RoHS and HF Compliant.
• Tape & Reel Qty: 1500 on a 13” Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 3 | 7.4 | 6.8 | 10uH, 10%, 106.5mOhm, 3.4Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 1uH, 20%, 8mOhm, 16.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 1.5uH, 20%, 9.25mOhm, 15Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 2.2uH, 10%, 23.4mOhm, 8.2Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 3.3uH, 10%, 30.5mOhm, 7Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 4.7uH, 10%, 41.5mOhm, 6.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 8.2uH, 10%, 87mOhm, 3.6Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 0.1uH, 20%, 1mOhm, 39Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 0.22uH, 20%, 1.5mOhm, 35Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 0.47uH, 20%, 2.6mOhm, 28Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 7.4 | 6.8 | 0.72uH, 20%, 4.2mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet |
