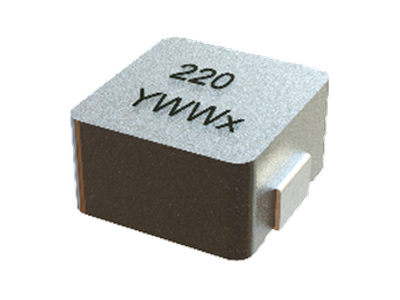

SM2515A Series
• 7.4 x 6.8 mm foot Print, 4.0mm Max. height SMD Power Inductor for high frequency
• application, Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 22.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Moisture Sensitivity Level (MSL) 1.
• Operating Temperature Range: -55˚C to 155˚C (ambient + self-temperature rise) .
• T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• application, Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 22.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Moisture Sensitivity Level (MSL) 1.
• Operating Temperature Range: -55˚C to 155˚C (ambient + self-temperature rise) .
• T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 10 | 57 | 5 | 5 | 7.3 | 6.8 | 10.0uH, 20%, 57mOhm, 5A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 15 | 73.5 | 4 | 4.5 | 7.3 | 6.8 | 15.0uH, 20%, 73.5mOhm, 4.5A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 1 | 5.6 | 14 | 15 | 7.3 | 6.8 | 1.0uH, 20%, 5.6mOhm, 15A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 1.5 | 6.8 | 12 | 10.5 | 7.3 | 6.8 | 1.5uH, 20%, 6.8mOhm, 10.5A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 22 | 114.2 | 3 | 3 | 7.3 | 6.8 | 22uH, 20%, 114.2mOhm, 3A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 2.2 | 11 | 10 | 11 | 7.3 | 6.8 | 2.2uH, 20%, 11mOhm, 11Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 3.3 | 17.8 | 8.5 | 9.8 | 7.3 | 6.8 | 3.3uH, 20%, 17.8Mohm, 9.8A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 4.7 | 23.5 | 7 | 8.5 | 7.3 | 6.8 | 4.7uH, 20%, 23.5mOhm, 8.5A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 6.8 | 37.6 | 5.5 | 6.5 | 7.3 | 6.8 | 6.8uH, 20%, 37.6mOhm, 6.5A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.1 | 0.66 | 40 | 65 | 7.4 | 6.8 | 0.10uH, 20%, 0.66mOhm, 65Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.12 | 0.66 | 40 | 55 | 7.4 | 6.8 | 0.12uH, 20%, 0.66mOhm, 55Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.15 | 0.66 | 40 | 50 | 7.3 | 6.8 | 0.15uH, 20%, 0.66mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.22 | 1.15 | 33 | 34 | 7.4 | 6.8 | 0.22uH, 20%, 1.15mOhm, 34A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.33 | 1.5 | 24 | 25 | 7.4 | 6.8 | 0.33uH, 20%, 1.5mOhm, 25A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.47 | 3.2 | 18 | 21 | 7.3 | 6.8 | 0.47uH, 20%, 3.2mOhm, 21A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.56 | 3.3 | 18 | 20 | 7.3 | 6.8 | 0.56uH, 20%, 3.3mOhm, 20Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.68 | 4.2 | 17 | 18 | 7.3 | 6.8 | 0.68uH, 20%, 4.2mOhm, 18A Max. SMD Molded Inductor | Data Sheet |
