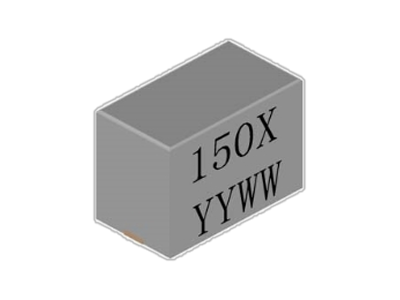

SLR43327 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance: 150nH, Custom values are welcomed.
• High current output chokes, upto 80.00 Amp with approx. 20% roll off.
• Low Profile 8.50 mm Max.height.
• 11.00 x 7.20 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 650 pcs , 13'' Reel.
• Inductance: 150nH, Custom values are welcomed.
• High current output chokes, upto 80.00 Amp with approx. 20% roll off.
• Low Profile 8.50 mm Max.height.
• 11.00 x 7.20 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 650 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8.5 | 0.15 | 0.35 | 43 | 80 | 11 | 7.2 | 0.15uH, 10%, 0.35mOhm, 80Amp Max. SMD Power bead | Data Sheet | ||
| 8.5 | 0.15 | 0.38 | 43 | 80 | 11 | 7.2 | 0.15uH, 10%, 0.38mOhm, 80Amp Max. SMD Power bead | Data Sheet |
