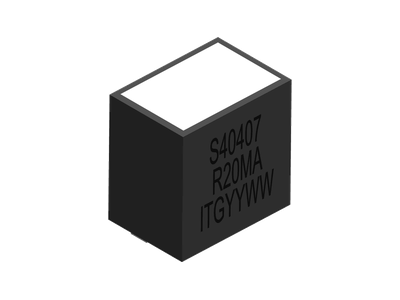

SLQ40407A Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 0.20uH to 1.5uH, Custom values are welcomed.
• High current output chokes, up to 96.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm Max. height.
• Foot Print 10.00 x 7.00 mm.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• T & R Qtys: 500 pcs , 13'' Reel. *** SLQ40407A-1R2MHF has been validated for Infineon 48V ZSC solutions ***
• Inductance Range: 0.20uH to 1.5uH, Custom values are welcomed.
• High current output chokes, up to 96.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm Max. height.
• Foot Print 10.00 x 7.00 mm.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• T & R Qtys: 500 pcs , 13'' Reel. *** SLQ40407A-1R2MHF has been validated for Infineon 48V ZSC solutions ***
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 1.5 | 0.73 | 31 | 10 | 10 | 7 | 1.5uH, 20%, 0.73mOhm, 10.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 1.2 | 0.73 | 31 | 13.5 | 10 | 7 | 1.2uH, 20%, 0.73mOhm, 13.50A Max. SMD Power Bead | Data Sheet | ||
| 10 | 1 | 0.73 | 31 | 17.5 | 10 | 7 | 1.0uH, 20%, 0.73mOhm, 17.50A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.68 | 0.73 | 31 | 27 | 10 | 7 | 0.68uH, 20%, 0.73mOhm, 27.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.56 | 0.73 | 31 | 36 | 10 | 7 | 0.56uH, 20%, 0.73mOhm, 36.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.47 | 0.73 | 31 | 42 | 10 | 7 | 0.47uH, 20%, 0.73mOhm, 42.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.33 | 0.73 | 31 | 65 | 10 | 7 | 0.33uH, 20%, 0.73mOhm, 65.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.2 | 0.73 | 31 | 96 | 10 | 7 | 0.20uH, 20%, 0.73mOhm, 96.0A Max. SMD Power Bead | Data Sheet |
