- SMD

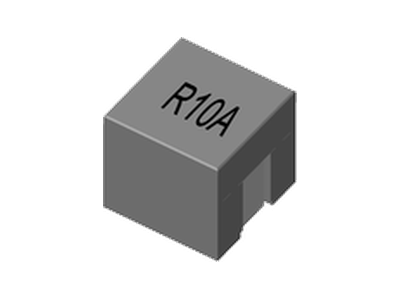

SL1616AQ Series
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 50.0nH to 100.0 nH, custom values are welcomed.
• High current output chokes , up to 29.0 Amp with approx. 20% roll off.
• Low profile 4.00 mm Max. height.
• 4.00 x 4.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 2000pcs, 13'' Reel.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 50.0nH to 100.0 nH, custom values are welcomed.
• High current output chokes , up to 29.0 Amp with approx. 20% roll off.
• Low profile 4.00 mm Max. height.
• 4.00 x 4.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 2000pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.1 | 0.32 | 19 | 17 | 4 | 4 | 100nH, 20%, 0.32mOhm, 17.00A Max, SMD Power Bead | Data Sheet | ||
| 4 | 0.08 | 0.32 | 19 | 22 | 4 | 4 | 80nH, 20%, 0.32mOhm, 22.00A Max, SMD Power Bead | Data Sheet | ||
| 4 | 0.065 | 0.32 | 19 | 26 | 4 | 4 | 65nH, 15%, 0.32mOhm, 26.00A Max, SMD Power Bead | Data Sheet | ||
| 4 | 0.05 | 0.32 | 19 | 29 | 4 | 4 | 50nH, 15%, 0.32mOhm, 29.00A Max, SMD Power Bead | Data Sheet |
