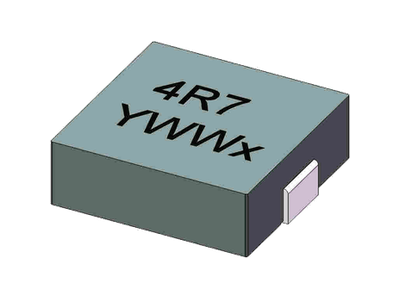

SMHC5013A Series
• • 13.80 x 12.90mm Foot Print , 3.50mm Max. height SMD Power Inductor forhigh frequency application. Operating frequency up to 5MHz• Inductance range from 0.47uH to 4.70 uH. Custom values are welcomed• High saturation current from distributed gap metal dust core• Ideal for DC
• DC converters, PDA, Notebook and Server Application• Operating Temperature Range: -55˚C to 125˚C • T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing• RoHS and HF Compliant
• DC converters, PDA, Notebook and Server Application• Operating Temperature Range: -55˚C to 125˚C • T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing• RoHS and HF Compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|
| 3.5 | 1 | 2.75 | 24 | 13.8 | 12.9 | 1.0uH, 20%, 2.75mOhm, 40Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3.5 | 1.5 | 4.1 | 19 | 13.8 | 12.9 | 1.5uH, 20%, 3.45mOhm, 35Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3.5 | 4.7 | 13.25 | 10 | 13.8 | 12.9 | 4.7uH, 20%, 13.25mOhm, 24Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3.5 | 0.47 | 1.25 | 32 | 13.8 | 12.9 | 0.47uH, 20%, 1.25mOhm, 55Amp Max. SMD Molded Inductor | Data Sheet |
