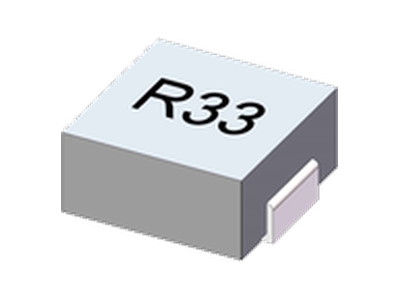

SM1608 Series

• 4.70 x 4.31mm foot Print , 2.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 6.80 uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing.
• RoHS and HF compliant.

Data Sheet

Specification of SM1608 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
SM1608-1R0MHF	2	1	33	8.5	4.7	4.31	1uH, 20%, 33mOhm, 3.75Amp Max. SMD Molded Inductor	Data Sheet
SM1608-1R5MHF	2	1.5	35	6	4.7	4.31	1.5uH, 20%, 35mOhm, 4Amp Max. SMD Molded Inductor	Data Sheet
SM1608-2R2MHF	2	2.2	52	5	4.7	4.31	2.2uH, 20%, 52mOhm, 3Amp Max. SMD Molded Inductor	Data Sheet
SM1608-3R3MHF	2	3.3	76	4	4.7	4.31	3.3uH, 20%, 76mOhm, 2.5Amp Max. SMD Molded Inductor	Data Sheet
SM1608-4R7MHF	2	4.7	118	2.8	4.7	4.31	4.7uH, 20%, 118mOhm, 2.4Amp Max. SMD Molded Inductor	Data Sheet
SM1608-6R8MHF	2	6.8	162	2.1	4.7	4.31	6.8uH, 20%, 162mOhm, 2Amp Max. SMD Molded Inductor	Data Sheet
SM1608-R10MHF	2	0.1	4.5	35	4.7	4.31	0.1uH, 20%, 4.5mOhm, 11Amp Max. SMD Molded Inductor	Data Sheet
SM1608-R22MHF	2	0.22	7.3	24	4.7	4.31	0.22uH, 20%, 7.3mOhm, 13Amp Max. SMD Molded Inductor	Data Sheet
SM1608-R33MHF	2	0.33	9.6	18	4.7	4.31	0.33uH, 20%, 9.6mOhm, 9Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SM1608-R47MHF	2	0.47	16	11.5	4.7	4.31	0.47uH, 20%, 16mOhm, 5.6Amp Max. SMD Molded Inductor	Data Sheet
