- SMD

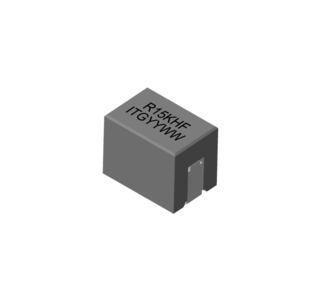

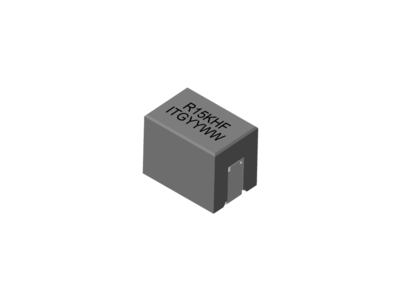

SL3732-R1 Series
• Immersion cooling ready power beads
• Inductance Range: 35.0nH to 470.0nH, Custom values are welcomed
• High current output chokes, up to 230.0 Amp with approx. 20% roll off
• Low Profile 9.50 mm Max. height
• Foot Print 9.00 x 5.00 mm Max
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 500 pcs , 13‘’ Reel Please contact ITG Sales or FAE to discuss your immersion cooling solvent and manufacturing process, ITG engineers will verify each customer's immersion cooling PCBA process.
• Inductance Range: 35.0nH to 470.0nH, Custom values are welcomed
• High current output chokes, up to 230.0 Amp with approx. 20% roll off
• Low Profile 9.50 mm Max. height
• Foot Print 9.00 x 5.00 mm Max
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 500 pcs , 13‘’ Reel Please contact ITG Sales or FAE to discuss your immersion cooling solvent and manufacturing process, ITG engineers will verify each customer's immersion cooling PCBA process.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.51 | 0.29 | 51 | 14 | 9.6 | 6.4 | 0.51uH, 15%, 0.29mOhm, 14Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.4 | 0.29 | 51 | 18 | 9.6 | 6.4 | 0.4uH, 15%, 0.29mOhm, 18Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.3 | 0.29 | 51 | 28 | 9.6 | 6.4 | 0.3uH, 10%, 0.29mOhm, 28Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.3 | 0.29 | 51 | 25 | 9.6 | 6.4 | 0.3uH, 10%, 0.29mOhm, 25Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.28 | 0.29 | 51 | 29 | 9.6 | 6.4 | 0.28uH, 10%, 0.29mOhm, 29Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.28 | 0.29 | 51 | 27 | 9.6 | 6.4 | 0.28uH, 10%, 0.29mOhm, 27Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.22 | 0.29 | 51 | 43 | 9.6 | 6.4 | 0.22uH, 10%, 0.29mOhm, 43Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.22 | 0.29 | 51 | 40 | 9.6 | 6.4 | 0.22uH, 10%, 0.29mOhm, 40Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.18 | 0.29 | 51 | 47 | 9.6 | 6.4 | 0.18uH, 10%, 0.29mOhm, 47Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.15 | 0.29 | 51 | 67 | 9.6 | 6.4 | 0.15uH, 10%, 0.29mOhm, 67Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.15 | 0.29 | 51 | 66 | 9.6 | 6.4 | 0.15uH, 10%, 0.29mOhm, 66Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.12 | 0.29 | 51 | 80 | 9.6 | 6.4 | 0.12uH, 10%, 0.29mOhm, 80Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.12 | 0.29 | 51 | 75 | 9.6 | 6.4 | 0.12uH, 10%, 0.29mOhm, 75Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.1 | 0.29 | 51 | 95 | 9.6 | 6.4 | 0.1uH, 10%, 0.29mOhm, 95Amp Max. SMD Power bead, Immersion Cooling | Data Sheet | ||
| 8 | 0.07 | 0.29 | 51 | 132 | 9.6 | 6.4 | 0.07uH, 10%, 0.29mOhm, 132Amp Max. SMD Power bead, Immersion Cooling | Data Sheet |
