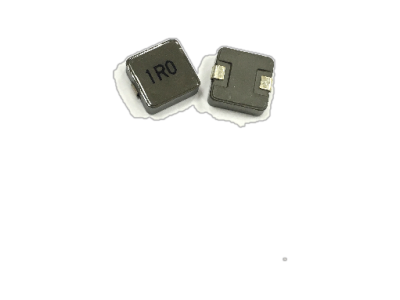

SMHC5020 Series
• 5mm Max. Height Molding Inductor for High Frequency Application.
• Inductance Range: 0.15uH to 10.00uH. Custom Values Welcomed.
• High Current Capability up to 75.0 A for Output Chokes Application.
• Ideal for Servers, Workstation Notebooks, VGA cards, and High Density Boards.
• Low DC Resistance and Compact Size for High Power Application.
• Quantity Per Reel: 500 pcs per 13" Reel.
• Inductance Range: 0.15uH to 10.00uH. Custom Values Welcomed.
• High Current Capability up to 75.0 A for Output Chokes Application.
• Ideal for Servers, Workstation Notebooks, VGA cards, and High Density Boards.
• Low DC Resistance and Compact Size for High Power Application.
• Quantity Per Reel: 500 pcs per 13" Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 17.7 | 9 | 14 | 14.2 | 13.3 | 10uH, 20%, 17.7mOhm, 14Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 1 | 2.1 | 29 | 50 | 14.2 | 13.3 | 1uH, 20%, 2.1mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 1.2 | 1.8 | 31 | 45 | 14.2 | 13.3 | 1.2uH, 20%, 1.8mOhm, 45Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 1.5 | 3.4 | 23 | 48 | 14.2 | 13.3 | 1.5uH, 20%, 3.4mOhm, 48Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 2.2 | 4.6 | 18 | 32 | 14.2 | 13.3 | 2.2uH, 20%, 4.6mOhm, 32Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 3.3 | 7.7 | 15 | 27.5 | 14.2 | 13.3 | 3.3uH, 20%, 7.7mOhm, 27.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 4.7 | 8.7 | 13 | 25 | 14.2 | 13.3 | 4.7uH, 20%, 8.7mOhm, 25Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 6.8 | 14.5 | 12 | 19 | 14.2 | 13.3 | 6.8uH, 20%, 14.5mOhm, 19Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 8.2 | 16.5 | 10 | 18 | 14.2 | 13.3 | 8.2uH, 20%, 16.5mOhm, 18Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 0.15 | 0.35 | 45 | 75 | 14.2 | 13.3 | 0.15uH, 20%, 0.35mOhm, 75Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 0.36 | 0.71 | 45 | 75 | 14.2 | 13.3 | 0.36uH, 20%, 0.71mOhm, 75Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 0.47 | 1.1 | 38 | 65 | 14.2 | 13.3 | 0.47uH, 20%, 1.1mOhm, 65Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 0.56 | 1.3 | 36 | 55 | 14.2 | 13.3 | 0.56uH, 20%, 1.3mOhm, 55Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 0.68 | 1.5 | 34 | 54 | 14.2 | 13.3 | 0.68uH, 20%, 1.5mOhm, 54Amp Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 0.82 | 2 | 31 | 53 | 14.2 | 13.3 | 0.82uH, 20%, 2mOhm, 53Amp Max. SMD Molded Inductor | Data Sheet |
