SMHC40156A Series

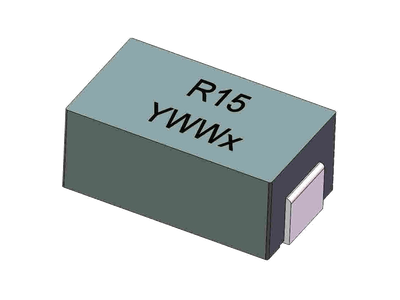

• • 10.50 x 5.90mm foot print, 4.00mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz • Inductance range from 0.10uH to 0.36uH. Custom values are welcomed • High saturation current from distributed gap metal dust core • Ideal for DC
• DC converters, PDA, Notebook and Server Application • Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) • T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 24mm wide, 12mm pocket spacing • RoHS and HF compliant
• DC converters, PDA, Notebook and Server Application • Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) • T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 24mm wide, 12mm pocket spacing • RoHS and HF compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.1 | 0.6 | 45 | 120 | 10.5 | 5.9 | 0.1uH, 20%, 0.6mOhm, 120.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.15 | 0.58 | 45 | 98 | 10.5 | 5.9 | 0.15uH, 20%, 0.58mOhm, 98.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 4 | 0.36 | 1.36 | 28 | 58 | 10.5 | 5.9 | 0.36uH, 20%, 1.36mOhm, 58.0A Max. SMD Molded Inductor | Data Sheet |
