SM3315A Series
• 8.80

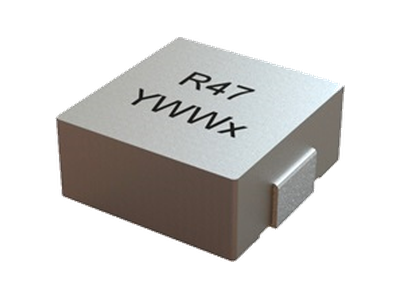

• 8.40 x 8.00 mm foot Print, 4.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 33.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C .
• T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
• 8.40 x 8.00 mm foot Print, 4.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 33.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C .
• T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 10 | 40.3 | 4.8 | 7 | 8.4 | 8 | 10.0uH, 20%, 40.3mOhm, 7.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 15 | 60.5 | 4.5 | 5.5 | 8.4 | 8 | 15.0uH, 20%, 60.5mOhm, 5.5A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 1 | 4.85 | 16.5 | 20 | 8.4 | 8 | 1.0uH, 20%, 4.85mOhm, 20.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 4 | 1.5 | 6.4 | 13 | 16 | 8.4 | 8 | 1.5uH, 20%, 6.4mOhm, 16.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 22 | 82.5 | 3.6 | 5 | 8.4 | 8 | 22.0uH, 20%, 82.5mOhm, 5.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 2.2 | 8.35 | 12.5 | 14 | 8.4 | 8 | 2.2uH, 20%, 8.35mOhm, 14.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 33 | 120 | 2.8 | 4 | 8.4 | 8 | 33.0uH, 120.0mOhm, 4.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 3.3 | 11.6 | 10 | 13.5 | 8.4 | 8 | 3.3uH, 20%, 11.6mOhm, 13.5A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 4.7 | 18.4 | 7.3 | 8 | 8.4 | 8 | 4.7uH, 20%, 18.4mOhm, 8.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 5.6 | 20.7 | 7 | 7.7 | 8.4 | 8 | 5.6uH, 20%, 20.7mOhm, 7.7A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 6.8 | 25.5 | 6 | 8.4 | 8 | 6.8uH, 20%, 25.5mOhm, 7.5A Max. SMD Molded Inductor | Data Sheet | ||||
| 4 | 8.2 | 35.5 | 5.5 | 7.2 | 8.4 | 8 | 8.2uH, 20%, 35.5mOhm, 7.2A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.1 | 0.48 | 45 | 72 | 8.8 | 8 | 0.10uH, 20%, 0.48mOhm, 72.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.15 | 0.57 | 42 | 70 | 8.8 | 8 | 0.15uH, 20%, 0.57mOhm, 70.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.22 | 1.95 | 29 | 55 | 8.4 | 8 | 0.22uH, 20%, 1.95mOhm, 55.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.33 | 2.5 | 24 | 45 | 8.4 | 8 | 0.33uH, 20%, 2.5mOhm, 45.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.47 | 3 | 21 | 30 | 8.4 | 8 | 0.47uH, 20%, 3.0mOhm, 30A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.68 | 3.6 | 18 | 24 | 8.4 | 8 | 0.68uH, 20%, 3.6mOhm, 24.0A Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.82 | 4.2 | 17 | 21 | 8.4 | 8 | 0.82uH, 20%, 4.2mOhm, 21.0A Max SMD Molded Inductor | Data Sheet |
