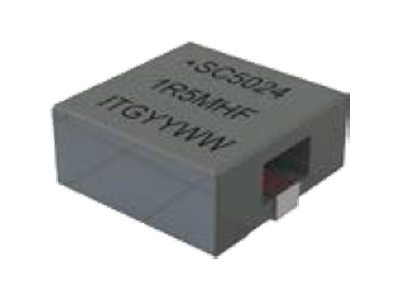

SC5024 Series
• Alloy powder based SMD Inductor with lower core loss.
• Flat wire windings provide extremely low DC and AC resistance.
• Inductance Range: 0.96uH to 3.30 uH , custom values are welcomed.
• High current output chokes, up to 37.0 Amp with approx. 30% roll off.
• Ideal for DC to DC converter, VRM & high density Board Design.
• Foot Print 13.0 x 14.0mm max. , 6.0mm max. Height.
• Operating Temperature Range: -55°C to + 150°C.
• T & R Qtys: 500 pcs , 13'' Reel with plastic tape 24mm wide and 16mm pocket spacing.
• RoHs & HF compliant.
• Flat wire windings provide extremely low DC and AC resistance.
• Inductance Range: 0.96uH to 3.30 uH , custom values are welcomed.
• High current output chokes, up to 37.0 Amp with approx. 30% roll off.
• Ideal for DC to DC converter, VRM & high density Board Design.
• Foot Print 13.0 x 14.0mm max. , 6.0mm max. Height.
• Operating Temperature Range: -55°C to + 150°C.
• T & R Qtys: 500 pcs , 13'' Reel with plastic tape 24mm wide and 16mm pocket spacing.
• RoHs & HF compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 6 | 13 | 13 | 1.5uH, 20%, 2.18mOhm, 21.0A Max. SMD Flatwire, Inductor | Data Sheet | ||
| 6 | 13 | 13 | 2.2uH, 20%, 2.95mOhm, 17.0A Max. SMD Flatwire, Inductor | Data Sheet | ||
| 6 | 13 | 13 | 3.1uH, 20%, 4.4mOhm, 14.5A Max. SMD Flatwire Indcutor | Data Sheet | ||
| 6 | 13 | 13 | 4.2uH, 20%, 6.85mOhm, 12.5A Max. SMD Flatwire Inductor | Data Sheet | ||
| 6 | 13 | 13 | 5.4uH, 20%, 7.7mOhm, 11.0A Max. SMD Flatwire Inductor | Data Sheet | ||
| 6 | 13 | 13 | 0.47uH, 20%, 0.75mOhm, 37.0A Max. SMD Flatwire Inductor | Data Sheet | ||
| 6 | 13 | 13 | 0.9uH, 20%, 1.35mOhm, 27.0A Max. SMD Flatwire Inductor | Data Sheet |
