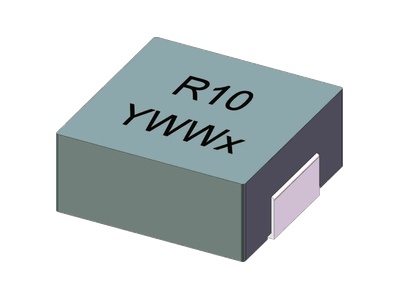

SMX2511A Series
• 7.40
• 7.30 x 6.80 mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 22.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 1500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
• 7.30 x 6.80 mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 22.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 1500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 10 | 54.5 | 4.2 | 7 | 7.3 | 6.8 | 10.0uH, 20%, 54.5mOhm, 7.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 15 | 94.5 | 3.4 | 6 | 7.3 | 6.8 | 15.0uH, 20%, 94.5mOhm, 6.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 1 | 5.55 | 14 | 19 | 7.3 | 6.8 | 1.0uH, 20%, 5.55mOhm, 19.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 1.5 | 7.75 | 11 | 17.5 | 7.3 | 6.8 | 1.5uH, 20%, 7.75mOhm, 17.5A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 22 | 130.5 | 2.7 | 4.3 | 7.3 | 6.8 | 22.0uH, 20%, 130.5mOhm, 4.3A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 2.2 | 11.1 | 10 | 17 | 7.3 | 6.8 | 2.2uH, 20%, 11.1mOhm, 17.0A Max. SMD molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 3.3 | 15.6 | 8 | 13.5 | 7.3 | 6.8 | 3.3uH, 20%, 15.6mOhm, 13.5A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 4.7 | 23 | 6.5 | 12 | 7.3 | 6.8 | 4.7uH, 20%, 23.0mOhm, 12.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 5.6 | 28.7 | 5.8 | 8.5 | 7.3 | 6.8 | 5.6uH, 20%, 28.7mOhm, 8.5A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 6.8 | 35.9 | 5.3 | 8 | 7.3 | 6.8 | 6.8uH, 20%, 35.9mOhm, 8.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.1 | 0.68 | 40 | 70 | 7.4 | 6.8 | 0.10uH, 20%, 0.68mOhm, 70.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.15 | 0.98 | 35 | 35 | 7.3 | 6.8 | 0.15uH, 20%, 0.85mOhm, 68.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.22 | 0.99 | 32 | 46 | 7.3 | 6.8 | 0.22uH, 20%, 0.99mOhm, 46.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.33 | 2.6 | 20 | 37 | 7.3 | 6.8 | 0.33uH, 20%, 2.6mOhm, 37.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.47 | 3.4 | 18 | 25.5 | 7.3 | 6.8 | 0.47uH, 20%, 3.4mOhm, 25.5A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.56 | 3.9 | 16.5 | 25.5 | 7.3 | 6.8 | 0.56uH, 20%, 3.90mOhm, 25.5A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.68 | 3.82 | 16.5 | 22 | 7.3 | 6.8 | 0.68uH, 20%, 3.82mOhm, 22.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.82 | 4.7 | 15 | 21.5 | 7.3 | 6.8 | 0.82uH, 20%, 4.7mOhm, 21.5A Max. SMD Molded Inductor | Data Sheet | 3D Step File |
