SMF1605A Series
• • 4.70 x 4.20mm foot print, 1.20mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz • Custom values are welcomed • High saturation current from distributed gap metal dust core • Ideal for DC
• DC converters, PDA, Notebook and Server Application • Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) • T & R Qtys: 3000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing • RoHS and HF compliant
• DC converters, PDA, Notebook and Server Application • Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) • T & R Qtys: 3000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing • RoHS and HF compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|

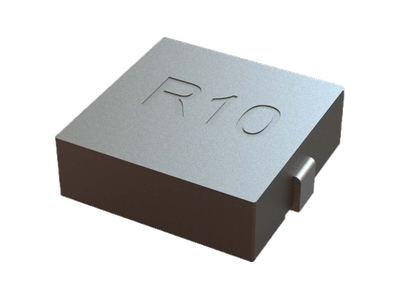

| 1.2 | 0.1 | 4.85 | 9 | 20 | 4.7 | 4.2 | 0.1uH, 20%, 4.85mOhm, 20.0A Max. SMD Molded Inductor | Data Sheet |
