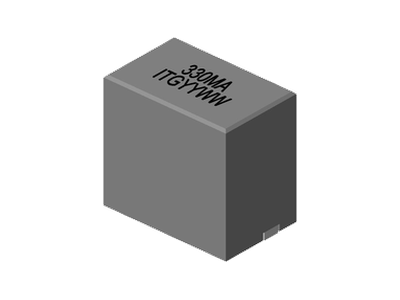

SLR4340 Series
• Ferrite based SMD Box Inductor design with lower noise and core loss.
• Inductance Range: 330.0 nH to 470.0 nH , custom values are welcomed.
• High current output chokes, up to 52.0 Amp with approx. 20% roll off.
• Low Profile 10.50 mm Max. height.
• 10.20 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 350 pcs , 13'' Reel.
• Inductance Range: 330.0 nH to 470.0 nH , custom values are welcomed.
• High current output chokes, up to 52.0 Amp with approx. 20% roll off.
• Low Profile 10.50 mm Max. height.
• 10.20 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 350 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10.5 | 0.47 | 1.05 | 25 | 37 | 10.9 | 6.7 | 0.3uH, 20%, 1.05mOhm, 50Amp Max. SMD Power bead | Data Sheet | ||
| 10.5 | 0.33 | 1.05 | 25 | 52 | 10.9 | 6.7 | 0.3uH, 20%, 1.05mOhm, 50Amp Max. SMD Power bead | Data Sheet |
