- SMD

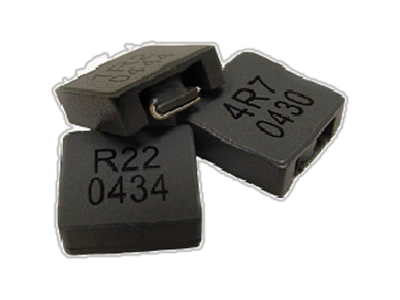

SC5018 Series
• 0.50” Package SMD Power Inductor.
• Ideal for DC to DC converter. VRM & High density board design.
• Low leakage flux.
• Shielded inductor design.
• Low profile 4.6mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
• Ideal for DC to DC converter. VRM & High density board design.
• Low leakage flux.
• Shielded inductor design.
• Low profile 4.6mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 5 | 13.1 | 13 | 1.2uH, 20%, 1.64mOhm, 35Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5 | 13.1 | 13 | 1.8uH, 20%, 3.24mOhm, 26Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5 | 13.1 | 13 | 2.7uH, 20%, 4.1mOhm, 24Amp Max. SMD Flat Wire Inductor | Data Sheet |
