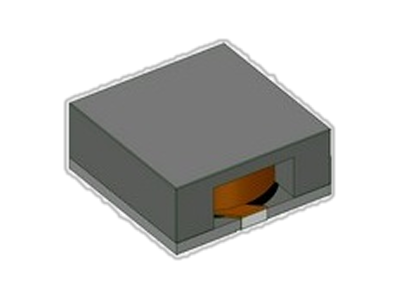

SC7236D Series
• Alloy Powder base SMD Inductor achieve higher saturation current.
• Custom values are welcomed.
• High current output chokes of up to 26.0 Amp with approx. 30% roll off.
• Flat wire windings provides extremely low DC and AC resistance.
• Operating temperature range -55°C to +130°C, RoHS & HF compliant.
• T & R Qtys: 150 pcs, 13” Reel.
• Custom values are welcomed.
• High current output chokes of up to 26.0 Amp with approx. 30% roll off.
• Flat wire windings provides extremely low DC and AC resistance.
• Operating temperature range -55°C to +130°C, RoHS & HF compliant.
• T & R Qtys: 150 pcs, 13” Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9.5 | 19.2 | 18.7 | 11uH, 20%, 5.9mOhm, 21Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 14uH, 20%, 6.9mOhm, 20Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 16uH, 20%, 8.7mOhm, 17.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 19uH, 20%, 9mOhm, 16Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 22uH, 20%, 10.7mOhm, 15.3Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 25uH, 20%, 13.8mOhm, 14.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 28uH, 20%, 14.6mOhm, 14Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 32uH, 20%, 19.3mOhm, 13Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 36uH, 20%, 20.4mOhm, 12.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 40uH, 20%, 21.5mOhm, 12Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 44uH, 20%, 21.7mOhm, 11.7Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 48uH, 20%, 32.8mOhm, 10.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 53uH, 20%, 33.5mOhm, 9.8Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 58uH, 20%, 43mOhm, 9.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 63uH, 20%, 44.1mOhm, 9Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 68uH, 20%, 45mOhm, 8.8Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 73uH, 20%, 47mOhm, 8.7Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 79uH, 20%, 48.5mOhm, 8.6Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 7.6uH, 20%, 3.9mOhm, 26Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 85uH, 20%, 50mOhm, 7.8Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 19.2 | 18.7 | 9.5uH, 20%, 4.8mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet |
