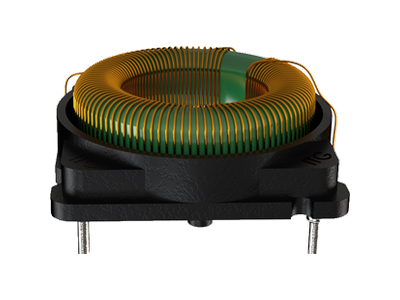

T301214 Series
• Miniaturized current sense transformer for high density DC to DC Converter.
• Low Profile 12.5mm height Max., 26.0 x 26.0mm board space.
• Full Selection of turns ratios, custom values are welcomed.
• Sensed Current up to 25A.
• Coil mount on UL94-V0 rated plastic header.
• Operating temperature range: −40°C to +125°C .
• RoHS & HF compliance Components.
• Low Profile 12.5mm height Max., 26.0 x 26.0mm board space.
• Full Selection of turns ratios, custom values are welcomed.
• Sensed Current up to 25A.
• Coil mount on UL94-V0 rated plastic header.
• Operating temperature range: −40°C to +125°C .
• RoHS & HF compliance Components.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 12.5 | 26 | 26 | 1:140 Turn Ratio, 59mH, 25%, 1.7Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet | ||
| 12.5 | 26 | 26 | 1:70 Turn Ratio, 14mH, 25%, 0.6Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet | ||
| 12.5 | 26 | 26 | 1:100 Turn Ratio, 29mH, 25%, 1.10Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet | ||
| 12.5 | 26 | 26 | 1:125 Turn Ratio, 46mH, 25%, 1.35Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet | ||
| 12.5 | 26 | 26 | 1:150 Turn Ratio, 66mH, 25%, 1.9Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet | ||
| 12.5 | 26 | 26 | 1:200 Turn Ratio, 118mH, 25%, 3.4Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet | ||
| 12.5 | 26 | 26 | 1:250 Turn Ratio, 184mH, 25%, 5.65Ohm Max, 25A Max Sensed Current. DIP Transformer | Data Sheet |
