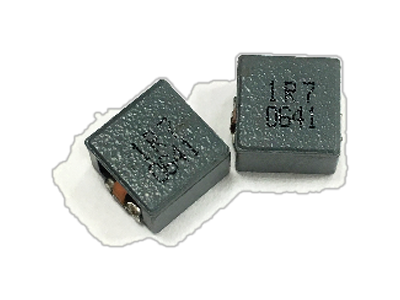

SC3020 Series
• 7.4 x 7.4 x 5.4mm package SMD high current inductor.
• Low core loss with no thermal aging.
• Ideal of DC to DC converter, VRM & high density board design.
• Tight DCR tolerance for accurate current sensing.
• Operating frequency of up to 2.0 MHz.
• T & R Qtys: 1,000pcs on a 13” Reel.
• Operating temperature: -40°C to 150°C.
• RoHS and HF Compliant.
• Low core loss with no thermal aging.
• Ideal of DC to DC converter, VRM & high density board design.
• Tight DCR tolerance for accurate current sensing.
• Operating frequency of up to 2.0 MHz.
• T & R Qtys: 1,000pcs on a 13” Reel.
• Operating temperature: -40°C to 150°C.
• RoHS and HF Compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 5.4 | 8.8 | 7.7 | 1uH, 20%, 2.6mOhm, 26Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 1.5uH, 20%, 5.1mOhm, 20Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 1.7uH, 20%, 4mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 2uH, 20%, 6mOhm, 17Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 3.3uH, 20%, 9.2mOhm, 15Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 4.7uH, 20%, 12.4mOhm, 12Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 6.8uH, 20%, 19.5mOhm, 11Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 0.3uH, 20%, 0.83mOhm, 36Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 0.4uH, 20%, 1.1mOhm, 35Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5.4 | 8.8 | 7.7 | 0.68uH, 20%, 1.95mOhm, 27Amp Max. SMD Flat Wire Inductor | Data Sheet |
