SMEC2511A Series

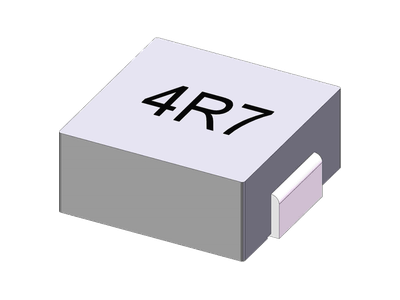

• 7.30 x 6.80 mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency
• application, Operating frequency up to 1MHz.
• Inductance range from 0.22uH to 10.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 1500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
• application, Operating frequency up to 1MHz.
• Inductance range from 0.22uH to 10.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 1500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 10 | 61 | 4.5 | 5.5 | 7.3 | 6.8 | 10.0uH, 20%, 61.0mOhm, 5.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 1 | 6.8 | 12 | 15 | 7.3 | 6.8 | 1.0uH, 20%, 6.8mOhm, 15.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 1.5 | 9.98 | 12 | 12 | 7.3 | 6.8 | 1.5uH, 20%, 9.98mOhm, 12.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 2.2 | 13 | 9.5 | 10 | 7.3 | 6.8 | 2.2uH, 10%, 13.0mOhm, 10.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 3.3 | 19 | 8.5 | 9.5 | 7.3 | 6.8 | 3.3uH, 20%, 19.0mOhm, 9.8A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 4.7 | 28.5 | 6 | 9 | 7.3 | 6.8 | 4.7uH, 20%, 28.5mOhm, 9.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 5.6 | 35.9 | 5.5 | 6.5 | 7.3 | 6.8 | 5.6uH, 20%, 35.9mOhm, 6.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 6.8 | 42 | 5 | 6 | 7.3 | 6.8 | 6.8uH, 20%, 42.0mOhm, 6.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 8.2 | 55 | 5 | 5.5 | 7.3 | 6.8 | 8.2uH, 20%, 55.0mOhm, 5.5A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.22 | 2.15 | 24 | 34 | 7.3 | 6.8 | 0.22uH, 20%, 2.15mOhm, 3.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.33 | 3 | 21 | 25 | 7.3 | 6.8 | 0.33uH, 20%, 3.0mOhm, 25.0 Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.47 | 3.7 | 18 | 20 | 7.3 | 6.8 | 0.47uH, 20%, 3.7mOhm, 20.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.56 | 4 | 16.5 | 18 | 7.3 | 6.8 | 0.56uH, 20%, 4.0mOhm, 18.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.68 | 4.85 | 16 | 17 | 7.3 | 6.8 | 0.68uH, 20%, 4.85mOhm, 17.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.82 | 5.66 | 14 | 16 | 7.3 | 6.8 | 0.82uH, 20%, 5.66mOhm, 16.0A Max. SMD Molded Inductor | Data Sheet |
