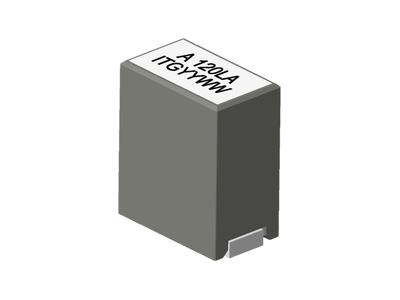

AHA40476A Series
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 170.0nH, Custom values are welcomed
• High current output chokes, up to 165.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 10.00 x 6.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
• Inductance Range: 70.0nH to 170.0nH, Custom values are welcomed
• High current output chokes, up to 165.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 10.00 x 6.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.17 | 0.125 | 76 | 63 | 10 | 6 | Coupling Inductor for TLVR, 170.0nH, 63.0A, 0.125mΩ DCR | Data Sheet | ||
| 12 | 0.15 | 0.125 | 76 | 75 | 10 | 6 | Coupling Inductor for TLVR, 150.0nH, 75.0A, 0.125mΩ DCR | Data Sheet | ||
| 12 | 0.12 | 0.125 | 76 | 95 | 10 | 6 | Coupling Inductor for TLVR, 120.0nH, 95.0A, 0.125mΩ DCR | Data Sheet | ||
| 12 | 0.1 | 12500 | 76 | 115 | 10 | 6 | Coupling Inductor for TLVR, 100.0nH, 115.0A, 0.125mΩ DCR | Data Sheet | ||
| 12 | 0.08 | 0.125 | 35 | 143 | 10 | 6 | Coupling Inductor for TLVR, 80.0nH, 143.0A, 0.125mΩ DCR | Data Sheet | ||
| 12 | 0.07 | 0.125 | 76 | 165 | 10 | 6 | Coupling Inductor for TLVR, 70.0nH, 165.0A, 0.125mΩ DCR | Data Sheet |
