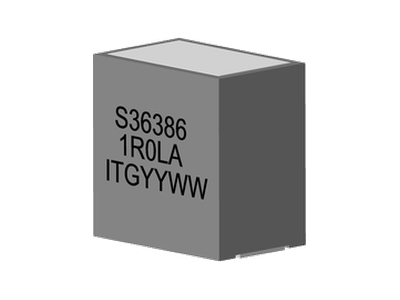

SLQ36386A Series
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 0.36uH to 2.70uH, Custom values are welcomed
• High current output chokes, up to 55.0 Amp with approx. 20% roll off
• Low Profile 9.50 mm Max. height
• Foot Print 9.00 x 6.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 500 pcs, 13'' Reel
• Inductance Range: 0.36uH to 2.70uH, Custom values are welcomed
• High current output chokes, up to 55.0 Amp with approx. 20% roll off
• Low Profile 9.50 mm Max. height
• Foot Print 9.00 x 6.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 500 pcs, 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 3.3 | 1.3 | 21 | 5.5 | 9 | 6 | 3.3uH, 15%, 1.3mOhm, 5.5A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 2.2 | 1.3 | 21 | 7 | 9 | 6 | 2.2uH, 15%, 1.3mOhm, 7.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 1.5 | 1.3 | 21 | 11 | 9 | 6 | 1.5uH, 15%, 1.3mOhm, 11.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 1 | 1.3 | 21 | 18 | 9 | 6 | 1.0uH, 15%, 1.3mOhm, 18.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.62 | 1.3 | 21 | 33 | 9 | 6 | 0.62uH, 15%, 1.3mOhm, 33.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.47 | 1.3 | 21 | 43 | 9 | 6 | 0.47nH, 15%, 1.3mOhm, 43.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.36 | 1.3 | 21 | 55 | 9 | 6 | 0.36uH, 15%, 1.3mOhm, 55.0A Max. SMD Power Bead | Data Sheet |
