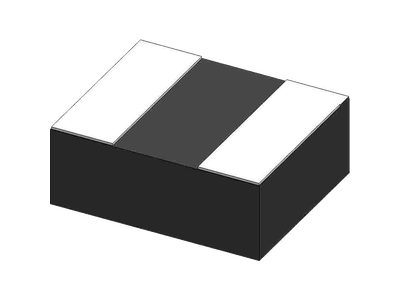

SMF252010A Series
• 1008 Foot print (2.5 x 2.0 mm)
• Inductance range from 0.10 uH to 4.70 uH
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, PAD, Notebook, smart phone & High Density DC to DC converter Board
• Lower DC resistance for higher current application
• Working Frequency up to 5MHz
• T & R Qtys: 3000 pcs , 7'' Reel and Plastic tape: 8mm wide, 4mm pocket spacing
• Operating Temperature Range -55°C to + 125°C
• RoHS and HF compliant
• Inductance range from 0.10 uH to 4.70 uH
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, PAD, Notebook, smart phone & High Density DC to DC converter Board
• Lower DC resistance for higher current application
• Working Frequency up to 5MHz
• T & R Qtys: 3000 pcs , 7'' Reel and Plastic tape: 8mm wide, 4mm pocket spacing
• Operating Temperature Range -55°C to + 125°C
• RoHS and HF compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | 22.5 | 4.5 | 5 | 2.7 | 2.2 | 1.0uH, 20%, 22.5mOhm, 5.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 1 | 2.2 | 60 | 2.5 | 3.2 | 2.7 | 2.2 | 2.2uH, 20%, 60.0mOhm, 3.2A Max. SMD Molded Inductor | Data Sheet | |||
| 1 | 3.3 | 90 | 2.1 | 2.5 | 2.7 | 2.2 | 3.3uH, 20%, 90.0mOhm, 2.5A Max. SMD Molded Inductor | Data Sheet | |||
| 1 | 4.7 | 145 | 1.8 | 2.1 | 2.7 | 2.2 | 4.7uH, 20%, 145.0mOhm, 2.1A Max. SMD Molded Inductor | Data Sheet | |||
| 1 | 0.1 | 5.8 | 8.5 | 9 | 2.7 | 2.2 | 0.1uH, 20%, 5.8mOhm, 9.0A Max. SMD Molded Inductor | Data Sheet | |||
| 1 | 0.47 | 15.5 | 5.5 | 6 | 2.7 | 2.2 | 0.47uH, 20%, 15.5mOhm, 6.0A Max. SMD Molded Inductor | Data Sheet |
