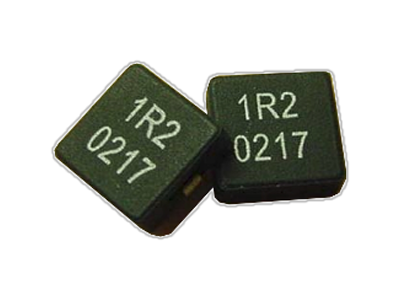

SC4025-13 Series
• 0.40” Package SMD Power Inductor.
• Ideal for DC to DC converter & High density board design.
• Operating frequency of up to 3 Mhz.
• Low leakage flux.
• Low profile 3.6 – 6.35mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
• Ideal for DC to DC converter & High density board design.
• Operating frequency of up to 3 Mhz.
• Low leakage flux.
• Low profile 3.6 – 6.35mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 3.6 | 11 | 10.4 | 0.75uH, 20%, 3.25mOhm, 25Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.35 | 11 | 10.4 | 0.47uH, 20%, 0.75mOhm, 45Amp Max. SMD Flat Wire Inductor | Data Sheet |
