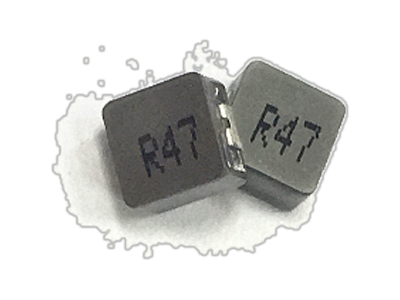

SM2511 Series

• Molded inductor structure. No audio noise.
• High saturation current realized by distributed gap metal dust core.
• Low profile: 3.0 mm max. height.
• Working frequency up to 3 MHz.
• Ideal for DC
• DC converters, PDA, notebook, and server applications.
• T&R quantity: 1000 pieces per reel.
• RoHS and Halogen Free (HF) Compliant.

Data Sheet

Specification of SM2511 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
SM2511-100MHF	3	10	102	7.3	6.8	10uH, 20%, 102mOhm, 7Amp Max. SMD Molded Inductor	Data Sheet
SM2511-1R0MHF	3	1	9	7.3	6.8	1uH, 20%, 9mOhm, 22Amp Max. SMD Molded Inductor	Data Sheet
SM2511-1R5MHF	3	1.5	14	7.3	6.8	1.5uH, 20%, 14mOhm, 18Amp Max. SMD Molded Inductor	Data Sheet
SM2511-2R2MHF	3	2.2	18	7.3	6.8	2.2uH, 20%, 18mOhm, 14Amp Max. SMD Molded Inductor	Data Sheet
SM2511-3R3MHF	3	3.3	28	7.3	6.8	3.3uH, 20%, 28mOhm, 13.5Amp Max. SMD Molded Inductor	Data Sheet
SM2511-4R7MHF	3	4.7	37	7.3	6.8	4.7uH, 20%, 37mOhm, 10Amp Max. SMD Molded Inductor	Data Sheet
SM2511-6R8MHF	3	6.8	54	7.3	6.8	6.8uH, 20%, 54mOhm, 8Amp Max. SMD Molded Inductor	Data Sheet
SM2511-8R2MHF	3	8.2	64	7.3	6.8	8.2uH, 20%, 64mOhm, 7.5Amp Max. SMD Molded Inductor	Data Sheet
SM2511-R10MHF	3	0.1	1.5	7.3	6.8	0.1uH, 20%, 1.5mOhm, 60Amp Max. SMD Molded Inductor	Data Sheet
SM2511-R22MHF	3	0.22	2.5	7.3	6.8	0.22uH, 20%, 2.5mOhm, 40Amp Max. SMD Molded Inductor	Data Sheet
SM2511-R33MHF	3	0.33	3.5	7.3	6.8	0.33uH, 20%, 3.5mOhm, 30Amp Max. SMD Molded Inductor	Data Sheet
SM2511-R47MHF	3	0.47	4	7.3	6.8	0.47uH, 20%, 4mOhm, 26Amp Max. SMD Molded Inductor	Data Sheet
SM2511-R68MHF	3	0.68	5	7.3	6.8	0.68uH, 20%, 5mOhm, 25Amp Max. SMD Molded Inductor	Data Sheet
SM2511-R82MHF	3	0.82	6.7	7.3	6.8	0.82uH, 20%, 6.7mOhm, 24Amp Max. SMD Molded Inductor	Data Sheet
