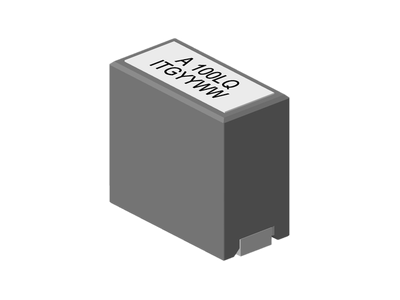

AHA47436Q Series
• AEC-Q200 Compliant
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 200.0nH, Custom values are welcomed
• High current output chokes, up to 165.0 Amp with approx. 20% roll off
• Low Profile 11.00 mm Max. height
• Foot Print 12.00 x 6.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 450 pcs , 13'' Reel
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 200.0nH, Custom values are welcomed
• High current output chokes, up to 165.0 Amp with approx. 20% roll off
• Low Profile 11.00 mm Max. height
• Foot Print 12.00 x 6.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 450 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11 | 0.2 | 0.125 | 78 | 62 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR, 200.0nH, 62.0A, 0.125mΩ DCR | Data Sheet | ||
| 11 | 0.17 | 0.125 | 78 | 74 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR, 170.0nH, 74.0A, 0.125mΩ DCR | Data Sheet | ||
| 11 | 0.15 | 0.125 | 78 | 85 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR,150.0nH, 85.0A, 0.125mΩ DCR | Data Sheet | ||
| 11 | 0.12 | 0.125 | 78 | 102 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR ,120.0nH,102.0A,0.125mΩ DCR | Data Sheet | ||
| 11 | 0.105 | 0.125 | 78 | 113 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR, 105.0nH, 113.0A, 0.125mΩ DCR | Data Sheet | ||
| 11 | 0.1 | 0.125 | 78 | 116 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR, 100.0nH, 116.0A, 0.125mΩ DCR | Data Sheet | ||
| 11 | 0.09 | 0.125 | 78 | 129 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR, 90.0nH, 129.0A, 0.125mΩ DCR | Data Sheet | ||
| 11 | 0.07 | 0.125 | 78 | 165 | 12 | 6 | Automotive Grade Coupling Inductor for TLVR, 70.0nH, 165.0A, 0.125mΩ DCR | Data Sheet |
