- SMD

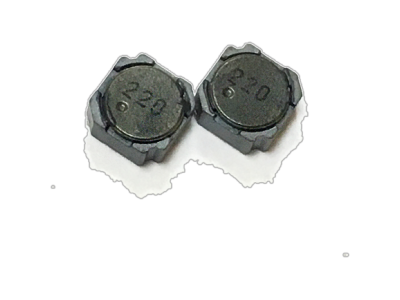

SDRR06825 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:0.65uH to 100uH. Custom values are welcomed.
• High current output chokes, upto 7.0 Amp with max. 35% roll off.
• Low Profile 2.5mm Max. height.
• Foot Print 6.8 x 6.8 mm Max.
• Ideal for LCD driver,DSC
• DVC,Notebook PC and High Density Board Design.
• Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
• Inductance Range:0.65uH to 100uH. Custom values are welcomed.
• High current output chokes, upto 7.0 Amp with max. 35% roll off.
• Low Profile 2.5mm Max. height.
• Foot Print 6.8 x 6.8 mm Max.
• Ideal for LCD driver,DSC
• DVC,Notebook PC and High Density Board Design.
• Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 6.8 | 2.5 | 6.8 | 10uH, 25%, 56.24mOhm, 1.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 100uH, 25%, 549.1mOhm, 0.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 12uH, 25%, 67.85mOhm, 1.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 15uH, 25%, 83.14mOhm, 1.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 18uH, 25%, 95.75mOhm, 1.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 1.1uH, 25%, 9.76mOhm, 5.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 1.6uH, 25%, 11.87mOhm, 5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 22uH, 25%, 117.82mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 27uH, 25%, 143.47mOhm, 1.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 2.2uH, 25%, 15.95mOhm, 3.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 33uH, 25%, 160.1mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 39uH, 25%, 210.9mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 3uH, 25%, 19.12mOhm, 3.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 3.6uH, 25%, 23.65mOhm, 3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 47uH, 25%, 252.6mOhm, 0.85Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 4.7uH, 25%, 27.96mOhm, 2.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 56uH, 25%, 285.7mOhm, 0.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 5.8uH, 25%, 35.12mOhm, 2.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 68uH, 25%, 354.7mOhm, 0.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 6.8uH, 25%, 39.92mOhm, 2.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 82uH, 25%, 445.8mOhm, 0.65Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 8uH, 25%, 45.25mOhm, 2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 2.5 | 6.8 | 0.65uH, 25%, 6.51mOhm, 7Amp Max. SMD Shielded Drum Inductor | Data Sheet |
