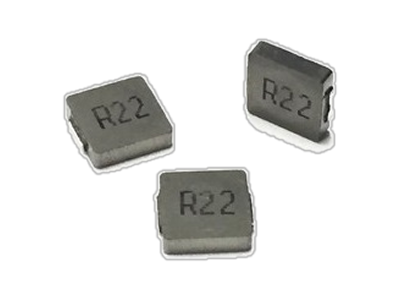

SM2507A Series
• 7.30x6.80mm foot print with 1.80mm Max. height
• Inductance range from 0.10uH to 10.0uH.
• Inductance range from 0.10uH to 10.0uH.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.8 | 10 | 147.8 | 2.3 | 3.7 | 7.3 | 6.8 | 10uH, 20%, 147.8mOhm, 3.7Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 1 | 13.7 | 8.5 | 13 | 7.3 | 6.8 | 1uH, 20%, 13.7mOhm, 13Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 1.5 | 19.7 | 8 | 9 | 7.3 | 6.8 | 1.5uH, 20%, 19.7mOhm, 9Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 2.2 | 26.9 | 7 | 8.5 | 7.3 | 6.8 | 2.2uH, 20%, 26.9mOhm, 8.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 3.3 | 41.6 | 4.5 | 8 | 7.3 | 6.8 | 3.3uH, 20%, 41.6mOhm, 8Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 4.7 | 55.5 | 4 | 5 | 7.3 | 6.8 | 4.7uH, 20%, 55.5mOhm, 5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 6.8 | 96.2 | 3 | 4.5 | 7.3 | 6.8 | 6.8uH, 20%, 96.2mOhm, 4.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 0.1 | 1.9 | 24 | 40 | 7.3 | 6.8 | 0.1uH, 20%, 1.9mOhm, 40Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 0.15 | 2.3 | 22 | 30 | 7.3 | 6.8 | 0.15uH, 20%, 2.3mOhm, 30Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 0.22 | 3 | 20 | 27 | 7.3 | 6.8 | 0.22uH, 20%, 3mOhm, 27Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 0.47 | 7 | 11.5 | 20 | 7.3 | 6.8 | 0.47uH, 20%, 7mOhm, 20Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 0.68 | 10.2 | 9.5 | 16.5 | 7.3 | 6.8 | 0.68uH, 20%, 10.2mOhm, 16.5Amp Max. SMD Molded Inductor | Data Sheet |
