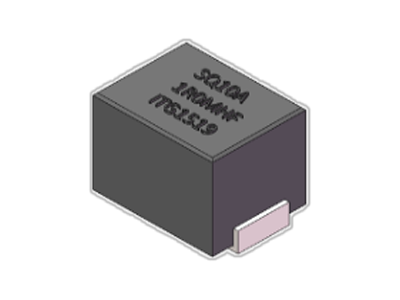

SQ10 Series
• Ferrite based SMD inductor with lower core loss.
• High current output chokes, up to 50.0 Amp with approx. 20% roll off.
• Low profile 8.50
• 10.50mm max height.
• Food Print 12.80 x 8.60
• 8.30mm max footprint.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 4.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 400
• 350pcs, 13'' Reel.
• High current output chokes, up to 50.0 Amp with approx. 20% roll off.
• Low profile 8.50
• 10.50mm max height.
• Food Print 12.80 x 8.60
• 8.30mm max footprint.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 4.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 400
• 350pcs, 13'' Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|
| 8.5 | 12.8 | 8.3 | 1uH, 20%, 2.3mOhm, 25Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 2.2uH, 20%, 6.35mOhm, 17Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 3.3uH, 20%, 8mOhm, 13Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 4.7uH, 20%, 10.2mOhm, 11.8Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.6 | 0.33uH, 20%, 1.3mOhm, 50Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.6 | 0.4uH, 20%, 1.3mOhm, 43Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 0.47uH, 20%, 2.3mOhm, 40Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 0.6uH, 20%, 2.3mOhm, 32Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 10.5 | 12.8 | 8.3 | 1uH, 20%, 4.05mOhm, 33Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 3.3uH, 20%, 10.2mOhm, 16Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 8.5 | 12.8 | 8.3 | 4.7uH, 20%, 12.35mOhm, 13Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File |
