- SMD

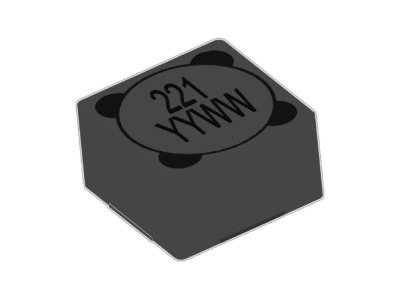

SDRH125B Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 0.82 uH to 1000.0 uH , custom values are welcomed.
• High current output chokes, up to 24.2 Amp with approx. 30% roll off.
• Low Profile 6.00mm max. height.
• Foot Print 12.5 x 12.5mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range -55°C to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant
• T & R Qtys: 500 pcs , 13'' Reel.
• Inductance Range: 0.82 uH to 1000.0 uH , custom values are welcomed.
• High current output chokes, up to 24.2 Amp with approx. 30% roll off.
• Low Profile 6.00mm max. height.
• Foot Print 12.5 x 12.5mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range -55°C to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant
• T & R Qtys: 500 pcs , 13'' Reel.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 12.5 | 6 | 12.5 | 10uH, 20%, 16.4mOhm, 6.9Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 100uH, 20%, 155mOhm, 2.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 1,000uH, 20%, 1,409mOhm, 0.69Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 15uH, 20%, 26.8mOhm, 5.65Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 150uH, 20%, 217mOhm, 1.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 1.5uH, 20%, 5.2mOhm, 18.5Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 22uH, 20%, 31.8mOhm, 4.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 220uH, 20%, 321mOhm, 1.5Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 2.2uH, 20%, 6.4mOhm, 14.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 33uH, 20%, 44.5mOhm, 4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 330uH, 20%, 434mOhm, 1.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 3.3uH, 20%, 7.9mOhm, 12.6Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 47uH, 20%, 65.9mOhm, 3.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 470uH, 20%, 627mOhm, 1Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 4.7uH, 20%, 10.7mOhm, 10.1Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 68uH, 20%, 99.1mOhm, 2.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 680uH, 20%, 888mOhm, 0.85Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 6.8uH, 20%, 11.9mOhm, 8.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 82uH, 20%, 121mOhm, 2.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 820uH, 20%, 1,093mOhm, 0.76Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 8.2uH, 20%, 15.6mOhm, 7.6Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 0.82uH, 20%, 3.9mOhm, 24.2Amp Max. SMD Drum Inductor | Data Sheet |
