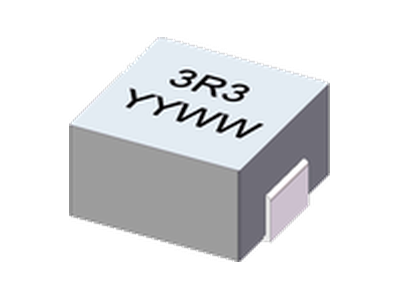

SM2011TK Series
5.30 x 4.90mm foot Print , 3.00mm Max. height SMD Power Inductor for high frequencyapplication. Operating frequency up to 5MHzInductance range from 3.3uH to 4.7uH. Custom values are welcomedHigh saturation current characteristics by distributed gapped metal dust coreIdeal for portable device, Pad, E-reader and high density DC to DC ConverteOperating Temperature Range: -55˚C to 150˚C (ambient + self-temperature rise) T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacingRoHS and HF Compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.3 | 38 | 4.5 | 6 | 5.3 | 4.9 | 3.3uH, 20%, 38.0mOhm, 4.20Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 4.7 | 61 | 4.3 | 5 | 5.3 | 4.9 | 4.7uH, 20%, 61.0mOhm, 3.50Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File |
