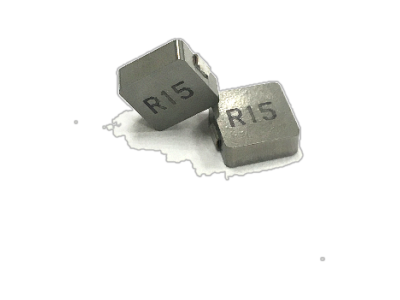

SM4015A Series
• Molded Inductor in 11.50 x 10.00mm foot print.
• High saturation current from distributed gap metal dust core.
• Low profile: 4.00mm Max. Height.
• Ideal for DC
• DC converters, PDA, Notebook and Server Application.
• RoHS and HF compliant.
• T & R Qtys: 500pcs on a 13” Reel.
• High saturation current from distributed gap metal dust core.
• Low profile: 4.00mm Max. Height.
• Ideal for DC
• DC converters, PDA, Notebook and Server Application.
• RoHS and HF compliant.
• T & R Qtys: 500pcs on a 13” Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|---|---|---|---|
| 4 | 10 | 26.64 | 8.5 | 11.5 | 10.3 | 10uH, 20%, 26.64mOhm, 8.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 15 | 38 | 7 | 11.5 | 10.3 | 15uH, 20%, 38mOhm, 7Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 1 | 2.55 | 28 | 11.5 | 10.3 | 1uH, 20%, 2.55mOhm, 28Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 1.5 | 3.3 | 25 | 11.5 | 10.3 | 1.5uH, 20%, 3.3mOhm, 25Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 22 | 62 | 5.5 | 11.5 | 10.3 | 22uH, 20%, 62mOhm, 5.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 2.2 | 6.5 | 18 | 11.5 | 10.3 | 2.2uH, 20%, 6.5mOhm, 18Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 33 | 89 | 5 | 11.5 | 10.3 | 33uH, 20%, 89mOhm, 5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 3.3 | 10.35 | 16 | 11.5 | 10.3 | 3.3uH, 20%, 10.35mOhm, 16Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 47 | 135.7 | 3.5 | 11.5 | 10.3 | 47uH, 20%, 135.7mOhm, 3.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 4.7 | 13.05 | 15 | 11.5 | 10.3 | 4.7uH, 20%, 13.05mOhm, 15Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 68 | 190.3 | 3 | 11.5 | 10.3 | 68uH, 20%, 190.3mOhm, 3Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 6.8 | 21.8 | 11 | 11.5 | 10.3 | 6.8uH, 20%, 21.8mOhm, 11Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 8.2 | 22.98 | 9 | 11.5 | 10.3 | 8.2uH, 20%, 22.98mOhm, 9Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.1 | 0.34 | 50 | 95 | 11.5 | 10.3 | 0.10uH, 20%, 0.34mOhm, 95.0A Max. SMD Molded Inductor | Data Sheet | |
| 4 | 0.12 | 0.36 | 50 | 85 | 11.5 | 10.3 | 0.12uH, 20%, 0.36mOhm, 85.0A Max. SMD Molded Inductor | Data Sheet | |
| 4 | 0.15 | 0.47 | 75 | 11.5 | 10.3 | 0.15uH, 20%, 0.47mOhm, 75Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.22 | 0.6 | 65 | 11.5 | 10.3 | 0.22uH, 20%, 0.6mOhm, 65Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.3 | 0.8 | 50 | 11.5 | 10.3 | 0.3uH, 20%, 0.8mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.36 | 1.05 | 50 | 11.5 | 10.3 | 0.36uH, 20%, 1.05mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.45 | 1.1 | 30 | 45 | 11.5 | 10.3 | 0.45uH, 20%, 1.1mOhm, 45.0A Max. SMD Molded Inductor | Data Sheet | |
| 4 | 0.47 | 1.3 | 30 | 40 | 11.5 | 10.3 | 0.47uH, 20%, 1.3mOhm, 40Amp Max. SMD Molded Inductor | Data Sheet | |
| 4 | 0.56 | 1.35 | 33 | 11.5 | 10.3 | 0.56uH, 20%, 1.35mOhm, 33Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.68 | 1.95 | 30 | 11.5 | 10.3 | 0.68uH, 20%, 1.95mOhm, 30Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.8 | 2 | 29 | 11.5 | 10.3 | 0.8uH, 20%, 2mOhm, 29Amp Max. SMD Molded Inductor | Data Sheet |
