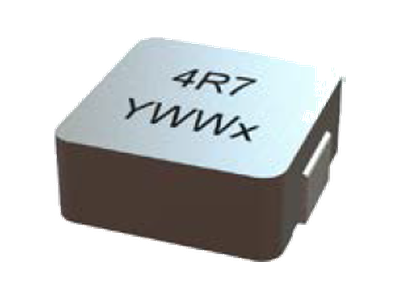

SM4015 Series
• • 11.50 x 10.30mm Foot Print , 4.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 1MHz• Inductance range from 0.45uH to 2.20 uH. Custom values are welcomed• High saturation current from distributed gap metal dust core• Ideal for DC
• DC converters, PDA, Notebook and Server Application• Operating Temperature Range: -55˚C to 125˚C • T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing• RoHS and HF Compliant
• DC converters, PDA, Notebook and Server Application• Operating Temperature Range: -55˚C to 125˚C • T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing• RoHS and HF Compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 1 | 2.6 | 21 | 12 | 10.3 | 1uH, 20%, 2.6mOhm, 30Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 4 | 2.2 | 8.2 | 12 | 12 | 10.3 | 2.2uH, 20%, 8.2mOhm, 25.6Amp Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.45 | 1.1 | 29 | 11.5 | 10.3 | 0.45uH, 20%, 1.1mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet | |||
| 4 | 0.56 | 1.6 | 28 | 12 | 10.3 | 0.56uH, 20%, 1.6mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet |
