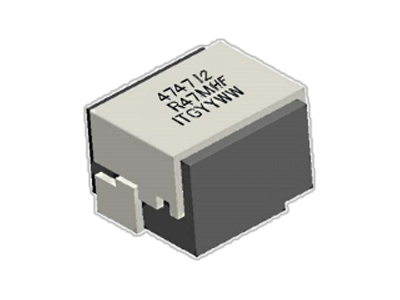

SLM474712 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:390.0nH to 1200.0nH. Custom values are welcomed.
• High current output chokes, upto 81.0 Amp with approx. 20% roll off.
• Low Profile 11.80mm Max. height.
• Foot Print 12.0 x 11.90 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 250 pcs , 13'' Reel.
• Inductance Range:390.0nH to 1200.0nH. Custom values are welcomed.
• High current output chokes, upto 81.0 Amp with approx. 20% roll off.
• Low Profile 11.80mm Max. height.
• Foot Print 12.0 x 11.90 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 250 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11.8 | 1.2 | 0.69 | 43 | 23 | 12 | 11.9 | 1.2uH, 20%, 0.69mOhm, 23Amp Max. SMD Power bead | Data Sheet | ||
| 11.8 | 1 | 0.69 | 43 | 30 | 12 | 11.9 | 1uH, 20%, 0.69mOhm, 30Amp Max. SMD Power bead | Data Sheet | ||
| 11.8 | 0.82 | 0.69 | 43 | 12 | 11.9 | 0.82uH, 20%, 0.69mOhm, 37Amp Max. SMD Power bead | Data Sheet | |||
| 11.8 | 0.56 | 0.69 | 43 | 12 | 11.9 | 0.56uH, 20%, 0.69mOhm, 54Amp Max. SMD Power bead | Data Sheet | |||
| 11.8 | 0.47 | 0.69 | 43 | 12 | 11.9 | 0.47uH, 20%, 0.69mOhm, 67Amp Max. SMD Power bead | Data Sheet | |||
| 11.8 | 0.39 | 0.69 | 43 | 81 | 12 | 11.9 | 0.39uH, 20%, 0.69mOhm, 81Amp Max. SMD Power bead | Data Sheet |
