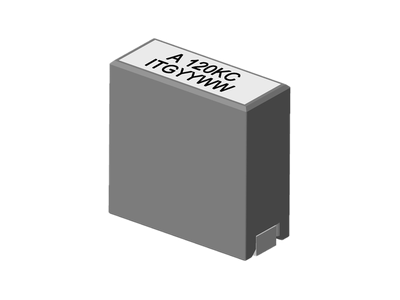

AHA47475C Series
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 100.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 105.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 12.00 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHS & HF compliance
• T & R Qtys: 400 pcs , 13'' Reel
• Inductance Range: 100.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 105.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 12.00 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHS & HF compliance
• T & R Qtys: 400 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.12 | 0.125 | 40 | 86 | 12 | 5 | 120.0nH, 10%, 0.125mOhm, 86.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.1 | 0.125 | 40 | 105 | 12 | 5 | 100.0nH, 10%, 0.125mOhm, 105.0A Max. SMD Power Bead | Data Sheet |
