SM2509A Series

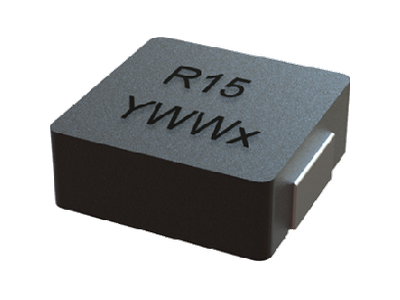

• 7.30 x 6.80mm foot Print , 2.40mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 22.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 155˚C.
• Tape & Reel Quantity: 1500 piece per 13 inches reel. RoHS and HF compliant.
• Inductance range from 0.10uH to 22.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 155˚C.
• Tape & Reel Quantity: 1500 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 | 10 | 78.5 | 3.1 | 4 | 7.3 | 6.8 | 10uH, 20%, 78.5mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 1 | 8.6 | 9 | 16 | 7.3 | 6.8 | 1uH, 20%, 8.6mOhm, 16Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 1.5 | 15.84 | 9 | 15 | 7.3 | 6.8 | 1.5uH, 20%, 15.84mOhm, 15Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 22 | 216.5 | 2 | 2.25 | 7.3 | 6.8 | 22uH, 20%, 216.5mOhm, 2.25Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 2.2 | 22.44 | 7 | 14 | 7.3 | 6.8 | 2.2uH, 20%, 22.44mOhm, 14Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 3.3 | 34.58 | 5.5 | 10 | 7.3 | 6.8 | 3.3uH, 20%, 34.58mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 4.7 | 46.2 | 5 | 6.5 | 7.3 | 6.8 | 4.7uH, 20%, 46.2mOhm, 6.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 6.8 | 67 | 4 | 6 | 7.3 | 6.8 | 6.8uH, 20%, 67mOhm, 6Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.1 | 0.8 | 36 | 52 | 7.3 | 6.8 | 0.1uH, 20%, 0.8mOhm, 52Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.15 | 0.85 | 35 | 40 | 7.3 | 6.8 | 0.15uH, 20%, 0.85mOhm, 40Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.22 | 2.6 | 21 | 34 | 7.3 | 6.8 | 0.22uH, 20%, 2.6mOhm, 34Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.33 | 3.5 | 18 | 24.5 | 7.3 | 6.8 | 0.33uH, 20%, 3.5mOhm, 24.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.47 | 4.7 | 151 | 22 | 7.3 | 6.8 | 0.47uH, 20%, 4.7mOhm, 22Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.56 | 5.25 | 13 | 17 | 7.3 | 6.8 | 0.56uH, 20%, 5.25mOhm, 17Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2.4 | 0.68 | 5.4 | 12 | 16 | 7.3 | 6.8 | 0.68uH, 20%, 5.4mOhm, 16Amp Max. SMD Molded Inductor | Data Sheet |
