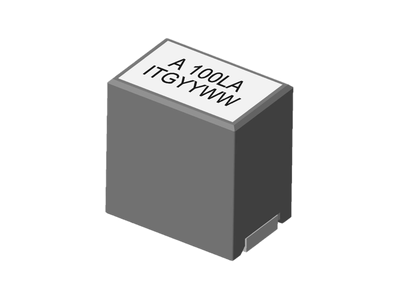

AHA3740A Series
Ferrite based TLVR inductor with lower core loss.Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed.High current output chokes, up to 125.0 Amp with approx. 20% roll off.Low Profile 10.00 mm Max. height .Foot Print 9.60 x 6.40 mm .Co-layout single inductors are available upon request for flexible design options.Operating frequency up to 5.0 MHz application.Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .T & R Qtys: 500 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.15 | 0.125 | 71 | 65 | 9.6 | 6.4 | Coupling Inductor for TLVR, 150.0nH, 65.0A, 0.125mΩ DCR | Data Sheet | 3D Step File | |||
| 10 | 0.12 | 0.125 | 71 | 80 | 9.6 | 6.4 | Coupling Inductor for TLVR, 120.0nH, 80.0A, 0.125mΩ DCR | Data Sheet | 3D Step File | |||
| 10 | 0.1 | 0.125 | 71 | 92 | Coupling Inductor for TLVR, 100.0nH, 92.0A, 0.125mΩ DCR | Data Sheet | 3D Step File | 3D Step File | ||||
| 10 | 0.07 | 0.125 | 71 | 125 | 9.6 | 6.4 | Coupling Inductor for TLVR, 70.0nH, 125.0A, 0.125mΩ DCR | Data Sheet | 3D Step File |
