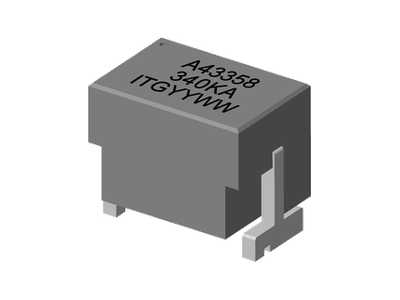

AHD43358 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance 340nH. Custom values are welcomed.
• High current output chokes, up to 35.0 Amp with approx. 20% roll off.
• Low profile 10.0mm Max. height .
• Foot Print 11.0 x 8.0 mm Max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 450 pcs , 13'' Reel.
• Inductance 340nH. Custom values are welcomed.
• High current output chokes, up to 35.0 Amp with approx. 20% roll off.
• Low profile 10.0mm Max. height .
• Foot Print 11.0 x 8.0 mm Max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 450 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.34 | 0.41 | 45 | 35 | 11.6 | 8 | 0.34uH, 10%, 0.41mOhm, 35Amp Max. SMD Power bead | Data Sheet |
