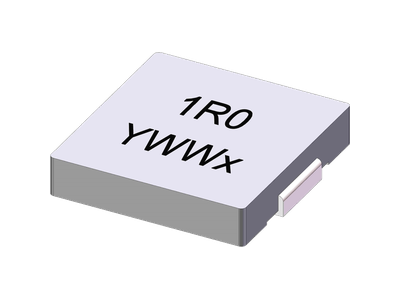

SM2504 Series
• 6.45 x 6.40 mm foot Print, 1.0mm Max. height SMD Power Inductor for high frequencyapplication, Operating frequency up to 5MHz
• Inductance range from 1.0uH to 10.0uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing
• Inductance range from 1.0uH to 10.0uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 10 | 265 | 1.6 | 2.1 | 6.45 | 6.4 | 10.0uH, 20%, 265mOhm, 2.1Amp Max. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 1 | 1 | 36 | 5 | 6 | 6.45 | 6.4 | 1.0uH, 20%, 36.0mOhm, 6.0Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 1 | 6.8 | 197 | 2 | 2.5 | 6.45 | 6.4 | 6.8uH, 20%, 164mOhm, 2.5Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File |
