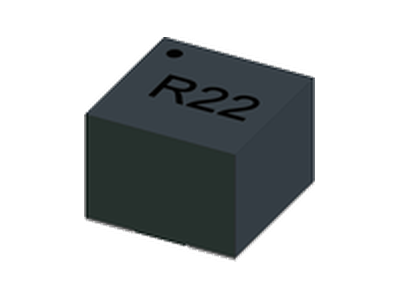

SMF1611B Series
• 4.30 x 4.30 mm foot Print, 3.00mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz
• Inductance range from 0.10uH to 6.80uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 1 | 6 | 15 | 11.6 | 4.3 | 4.3 | 1.00uH, 20%, 6.00mOhm, 11.60A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 1.5 | 8.75 | 12 | 8.8 | 4.3 | 4.3 | 1.50uH, 20%, 8.75mOhm, 8.80A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 2.2 | 14 | 9.5 | 7 | 4.3 | 4.3 | 2.20uH, 20%, 14.00mOhm, 7.00A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 3.3 | 18 | 8.8 | 7.5 | 4.3 | 4.3 | 3.3uH, 20%, 18.00mOhm, 7.50A Typ. SMD Molded Inductor | ||||
| 3 | 4.7 | 31 | 6.6 | 5.8 | 4.3 | 4.3 | 4.70uH, 20%, 31.00mOhm, 5.80A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 6.8 | 47 | 5.2 | 5 | 4.3 | 4.3 | 6.80uH, 20%, 47.00mOhm, 5.00A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 0.1 | 1.2 | 35 | 45 | 4.3 | 4.3 | 0.10uH, 20%, 1.20mOhm, 45.00A Typ. SMD Molded Inductor | ||||
| 3 | 0.12 | 1.2 | 35 | 40 | 4.3 | 4.3 | 0.12uH, 20%, 1.20mOhm, 40.00A Typ. SMD Molded Inductor | ||||
| 3 | 0.22 | 2 | 27.2 | 29 | 4.3 | 4.3 | 0.22uH, 20%, 2.00mOhm, 29.00A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 0.33 | 2.5 | 23.5 | 25 | 4.3 | 4.3 | 0.33uH, 20%, 2.50mOhm, 25.00A Typ. SMD Molded Inductor | ||||
| 3 | 0.47 | 3.15 | 21 | 21 | 4.3 | 4.3 | 0.47uH, 20%, 3.15mOhm, 21.00A Typ. SMD Molded Inductor | 3D Step File | Data Sheet | ||
| 3 | 0.68 | 4.4 | 17.8 | 19 | 4.3 | 4.3 | 0.68uH, 20%, 4.40mOhm, 19.00A Typ. SMD Molded Inductor | 3D Step File | Data Sheet |
