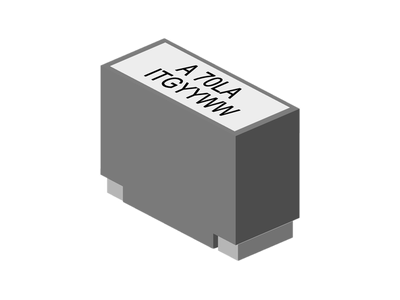

AHA43325A Series
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 100.0nH, Custom values are welcomed
• High current output chokes, up to 105.0 Amp with approx. 20% roll off
• Low Profile 8.00 mm Max. height
• Foot Print 11.00 x 4.80 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 450 pcs , 13'' Reel
• Inductance Range: 70.0nH to 100.0nH, Custom values are welcomed
• High current output chokes, up to 105.0 Amp with approx. 20% roll off
• Low Profile 8.00 mm Max. height
• Foot Print 11.00 x 4.80 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 450 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.1 | 0.23 | 75 | 74 | 11 | 4.8 | Coupling Inductor for TLVR, 100.0nH, 74.0A, 0.23mΩ DCR | Data Sheet | 3D Step File | ||
| 8 | 0.08 | 0.23 | 75 | 92 | 11 | 4.8 | Coupling Inductor for TLVR, 80.0nH, 92.0A, 0.23mΩ DCR | Data Sheet | 3D Step File | ||
| 8 | 0.07 | 0.23 | 75 | 105 | 11 | 4.8 | Coupling Inductor for TLVR, 70.0nH, 105.0A, 0.23mΩ DCR | Data Sheet | 3D Step File |
