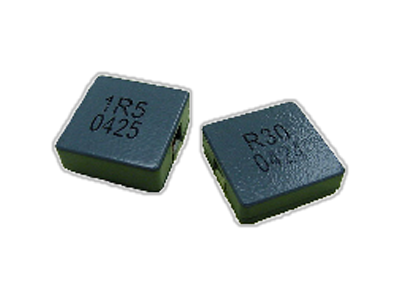

SC6020 & SC6027 Series
• 0.60" Package.
• Ideal for DC to DC converter; VRM & high density board design.
• Low leakage flux, shielded inductor design.
• Low profile.
• Suitable for IR reflow and wave solder process.
• Ideal for DC to DC converter; VRM & high density board design.
• Low leakage flux, shielded inductor design.
• Low profile.
• Suitable for IR reflow and wave solder process.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 5 | 16 | 15.6 | 0.33uH, 20%, 0.58mOhm, 60Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 10uH, 20%, 8.17mOhm, 18.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 19uH, 20%, 13.5mOhm, 11Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 1.5uH, 20%, 1.3mOhm, 38Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 2.2uH, 20%, 2.6mOhm, 26Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 3.3uH, 20%, 3.16mOhm, 23Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 4.8uH, 20%, 3.74mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 6.5uH, 20%, 5.9mOhm, 20Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7 | 16 | 15.6 | 8.2uH, 20%, 7.62mOhm, 19Amp Max. SMD Flat Wire Inductor | Data Sheet |
