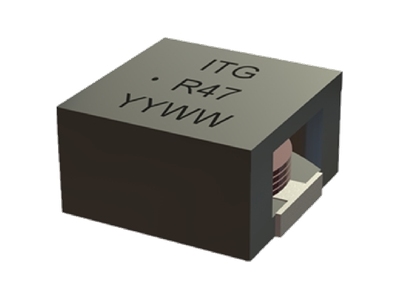

SC3015 Series
• 0.30” Package SMD Power Inductor.
• Low profile 4.0mm maximum height.
• Ideal for DC to DC converter, VRM & High density board design.
• Low leakage flux, Shielded inductor design.
• Suitable for IR reflow and wave solder process.
• T & R Qtys: 1,200pcs on a 13” Reel.
• Operating temperature -40℃ ~ 150℃.
• RoHS and HF Compliant.
• Low profile 4.0mm maximum height.
• Ideal for DC to DC converter, VRM & High density board design.
• Low leakage flux, Shielded inductor design.
• Suitable for IR reflow and wave solder process.
• T & R Qtys: 1,200pcs on a 13” Reel.
• Operating temperature -40℃ ~ 150℃.
• RoHS and HF Compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 4 | 8.9 | 7.4 | 250uH, 20%, 1mOhm, 0Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 8.9 | 7.4 | 470uH, 20%, 1.6mOhm, 0Amp Max. SMD Flat Wire Inductor | Data Sheet |
