- Elevated

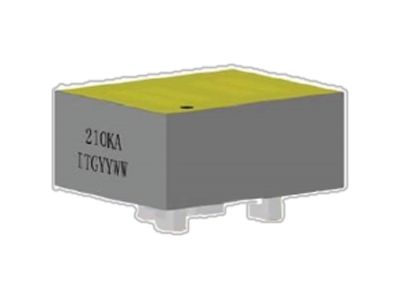

SLAE4732 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 210.0 nH , custom values are welcomed.
• High current output chokes, up to 53.0 Amp with approx. 30% roll off.
• Low Profile 8.13 mm Max. height.
• 13.40 x 10.84 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 450 pcs , 13'' Reel.
• Inductance Range: 210.0 nH , custom values are welcomed.
• High current output chokes, up to 53.0 Amp with approx. 30% roll off.
• Low Profile 8.13 mm Max. height.
• 13.40 x 10.84 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 450 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|
| 8.13 | 0.21 | 0.63 | 31 | 13.4 | 10.84 | 0.21uH, 10%, 0.63mOhm, 53Amp Max. Elevated Power bead | Data Sheet |
