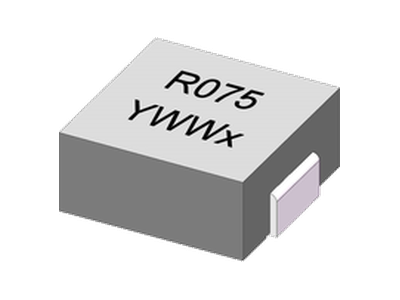

SM2511A Series
• 7.40
• 7.30x6.80mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.033uH to 33.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55°C to 155°C .
• Tape & Reel Quantity: 1000 piece per 13 inches reel. RoHS and HF compliant.
• 7.30x6.80mm foot Print, 3.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.033uH to 33.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55°C to 155°C .
• Tape & Reel Quantity: 1000 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 10 | 62 | 5.5 | 7.3 | 6.8 | 10uH, 20%, 62mOhm, 5.5Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 15 | 104 | 4 | 7.3 | 6.8 | 15uH, 20%, 104mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 1 | 6.4 | 15 | 7.3 | 6.8 | 1uH, 20%, 6.4mOhm, 15Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 1.5 | 8.6 | 14 | 7.3 | 6.8 | 1.5uH, 20%, 8.6mOhm, 14Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 22 | 180 | 3 | 7.3 | 6.8 | 22uH, 20%, 180mOhm, 3Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 2.2 | 13.5 | 10 | 7.3 | 6.8 | 2.2uH, 20%, 13.5mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 33 | 280 | 2.5 | 7.3 | 6.8 | 33uH, 20%, 280mOhm, 2.5Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 3.3 | 18 | 9.8 | 7.3 | 6.8 | 3.3uH, 20%, 18mOhm, 9.8Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 4.7 | 28 | 6.5 | 7.3 | 6.8 | 4.7uH, 20%, 28mOhm, 6.5Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 6.8 | 44.2 | 6 | 7.3 | 6.8 | 6.8uH, 20%, 44.2mOhm, 6.0Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 8.2 | 51.2 | 6 | 7.3 | 6.8 | 8.2uH, 20%, 51.2mOhm, 6Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.033 | 0.26 | 65 | 100 | 7.3 | 6.8 | 33nH, 20%, 0.26mOhm, 100.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.8 | 0.075 | 0.58 | 45 | 60 | 7.1 | 6.8 | 75nH, 20%, 0.58mOhm, 60A MAX. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.8 | 0.1 | 0.75 | 40 | 54 | 7.1 | 6.8 | 100nH, 20%, 0.75mOhm, 54A MAX. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.12 | 0.75 | 40 | 48 | 7.4 | 6.8 | 120nH, 20%, 0.75mOhm, 48.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.8 | 0.15 | 0.85 | 37 | 42 | 7.3 | 6.8 | 150nH, 20%, 0.85mOhm, 42A MAX. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 0.22 | 2.5 | 34 | 7.3 | 6.8 | 0.22uH, 20%, 2.5mOhm, 34Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.24 | 2.35 | 26 | 7.3 | 6.8 | 0.24uH, 20%, 2.35mOhm, 26Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.33 | 3 | 25 | 7.3 | 6.8 | 0.33uH, 20%, 3mOhm, 25Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.47 | 3.2 | 20 | 7.3 | 6.8 | 0.47uH, 20%, 3.2mOhm, 20Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.56 | 3.9 | 18 | 7.3 | 6.8 | 0.56uH, 20%, 3.9mOhm, 18Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.68 | 4.6 | 17 | 7.3 | 6.8 | 0.68uH, 20%, 4.6mOhm, 17Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | |||
| 3 | 0.82 | 5.4 | 16 | 7.3 | 6.8 | 0.82uH, 20%, 5.4mOhm, 16Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File |
