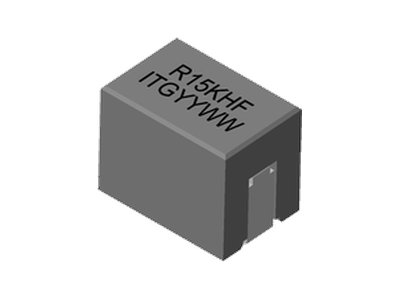

SL3732AQ Series
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 70.0 nH to 510.0 nH , custom values are welcomed.
• High current output chokes , up to 132.0 Amp with approx. 20% roll off.
• Low profile 8.00mm Max. Height.
• 9.60 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 650pcs, 13'' Reel.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 70.0 nH to 510.0 nH , custom values are welcomed.
• High current output chokes , up to 132.0 Amp with approx. 20% roll off.
• Low profile 8.00mm Max. Height.
• 9.60 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 650pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.51 | 0.29 | 51 | 14 | 9.5 | 6.4 | 510nH, 10%, 0.29mOhm, 14.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.4 | 0.29 | 51 | 18 | 9.5 | 6.4 | 400nH, 10%, 0.29mOhm, 18.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.3 | 0.29 | 51 | 28 | 9.5 | 6.4 | 300nH, 10%, 0.29mOhm, 28.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.28 | 0.29 | 51 | 29 | 9.5 | 6.4 | 280nH, 10%, 0.29mOhm, 29.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.22 | 0.29 | 51 | 43 | 9.5 | 6.4 | 220nH, 10%, 0.29mOhm, 43.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.18 | 0.29 | 51 | 47 | 9.5 | 6.4 | 180nH, 10%, 0.29mOhm, 47.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.15 | 0.29 | 51 | 67 | 9.5 | 6.4 | 150nH, 10%, 0.29mOhm, 67.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.12 | 0.29 | 51 | 80 | 9.5 | 6.4 | 120nH, 10%, 0.29mOhm, 80.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.1 | 0.29 | 51 | 95 | 9.5 | 6.4 | 100nH, 10%, 0.29mOhm, 95.00A Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.07 | 0.29 | 51 | 132 | 9.5 | 6.4 | 70nH, 15%, 0.29mOhm, 132.00A Max, SMD Power Bead | Data Sheet |
