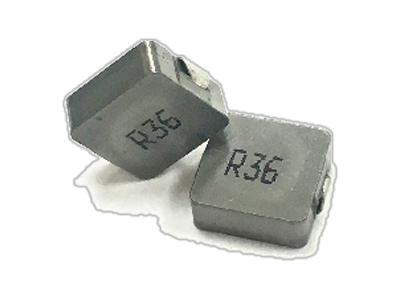

SM5024A Series
• T & R Qtys: 500 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 125°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 5MHz.
• Operating Temperature Range -55°C to + 125°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 5MHz.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 120 | 210 | 2.3 | 3.2 | 13.8 | 12.9 | 120uH, 20%, 210mOhm, 3.2Amp Max. SMD Molded Inductor | Data Sheet |
