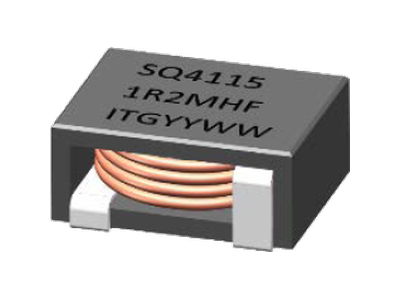

SQ4115 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 0.62uH to 1.4 uH, custom values are welcomed.
• High current output chokes up to 24.0 Amp with approx. 20% roll off.
• Low profile 4.00 mm Max. height.
• 8.10 x 10.30 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 1100pcs, 13'' Reel.
• Inductance range: 0.62uH to 1.4 uH, custom values are welcomed.
• High current output chokes up to 24.0 Amp with approx. 20% roll off.
• Low profile 4.00 mm Max. height.
• 8.10 x 10.30 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 1100pcs, 13'' Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 4 | 8.1 | 10.3 | 1.00uH, 1.15mOhm, 13A Max. Flat Wire SMD | Data Sheet | ||
| 4 | 8.1 | 10.3 | 1.20uH, 1.15mOhm, 10A Max. Flat Wire SMD | Data Sheet | ||
| 4 | 8.1 | 10.3 | 1.40uH, 20%, 2.9mOhm, 13.0A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 8.1 | 10.3 | 0.62uH, 1.15mOhm, 24A Max. Flat Wire SMD | Data Sheet | ||
| 4 | 8.1 | 10.3 | 0.72uH, 1.15mOhm, 20A Max. Flat Wire SMD | Data Sheet | ||
| 4 | 8.1 | 10.3 | 0.82uH, 1.15mOhm, 16A Max. Flat Wire SMD | Data Sheet | ||
| 4 | 8.1 | 10.3 | 0.90uH, 1.15mOhm, 15A Max. Flat Wire SMD | Data Sheet |
