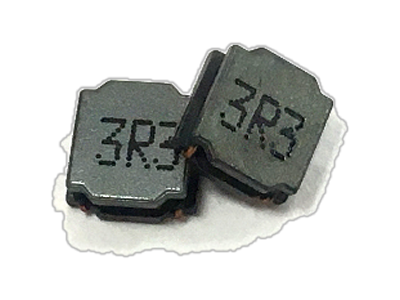

SLNR6310 Series
• Miniature SMD shielded power inductor.
• Low profile 1.0mm max height.
• Inductance range of 1.50uH to 22.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 1,000pcs, 7” Reel.
• Low profile 1.0mm max height.
• Inductance range of 1.50uH to 22.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 1,000pcs, 7” Reel.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 6.3 | 1 | 6.3 | 10uH, 20%, 270mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1 | 6.3 | 1.5uH, 20%, 90mOhm, 2.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1 | 6.3 | 22uH, 20%, 580mOhm, 0.65Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1 | 6.3 | 2.2uH, 20%, 110mOhm, 1.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1 | 6.3 | 3.3uH, 20%, 135mOhm, 1.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1 | 6.3 | 4.7uH, 20%, 165mOhm, 1.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 1 | 6.3 | 6.8uH, 20%, 220mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet |
