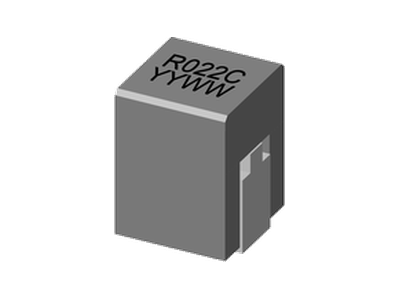

SL2026C Series
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 22.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 110.0 Amp with approx. 20% roll off
• Low Profile 7.00 mm Max. height
• Foot Print 5.20 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55℃to + 130℃, RoHs & HF compliance
• T & R Qtys: 750 pcs , 13'' Reel
• Inductance Range: 22.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 110.0 Amp with approx. 20% roll off
• Low Profile 7.00 mm Max. height
• Foot Print 5.20 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55℃to + 130℃, RoHs & HF compliance
• T & R Qtys: 750 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 0.15 | 0.185 | 37 | 22 | 5.2 | 5 | 150nuH, 20%, 0.185mOhm, 22.0A Max. SMD Power Bead | Data Sheet | ||
| 7 | 0.12 | 0.185 | 37 | 28 | 5.2 | 5 | 120nH, 20%, 0.185mOhm, 28.0A Max. SMD Power Bead | Data Sheet | ||
| 7 | 0.1 | 0.185 | 37 | 38 | 5.2 | 5 | 100nH, 20%, 0.185mOhm, 38.0A Max. SMD Power Bead | Data Sheet | ||
| 7 | 0.085 | 0.185 | 37 | 46 | 5.2 | 5 | 85H, 20%, 0.185mOhm, 46.0A Max. SMD Power Bead | Data Sheet | ||
| 7 | 0.055 | 0.185 | 37 | 76 | 5.2 | 5 | 55nH, 20%, 0.185mOhm, 76.0A Max. SMD Power Bead | Data Sheet | ||
| 7 | 0.022 | 0.185 | 37 | 110 | 5.2 | 5 | 22nH, 20%, 0.185mOhm,110.0A Max. SMD Power Bead | Data Sheet |
